Murall’s Hidden Detail

Once installed, your Murall wall system can be infinitely reconfigured to accommodate your evolving needs. Reconfiguring the wall requires minimal tools, minimal skill level and does not damage the wall or hardware in any way.

Let’s delve into the mechanics of the Murall wall system and discover how it can seamlessly transform your space.

Installing your Murall Wall Panels

Clip joiners together.

Murall joiners come in 500mm lengths. The joiners clip together to create lengths as required to suit the height of your wall panelling – then simply cut off from the top only. Within the joiners are concealed fixing points that hold all of the Murall Wall Hardware in place, allowing the user to position artwork, shelving and other items on the wall.

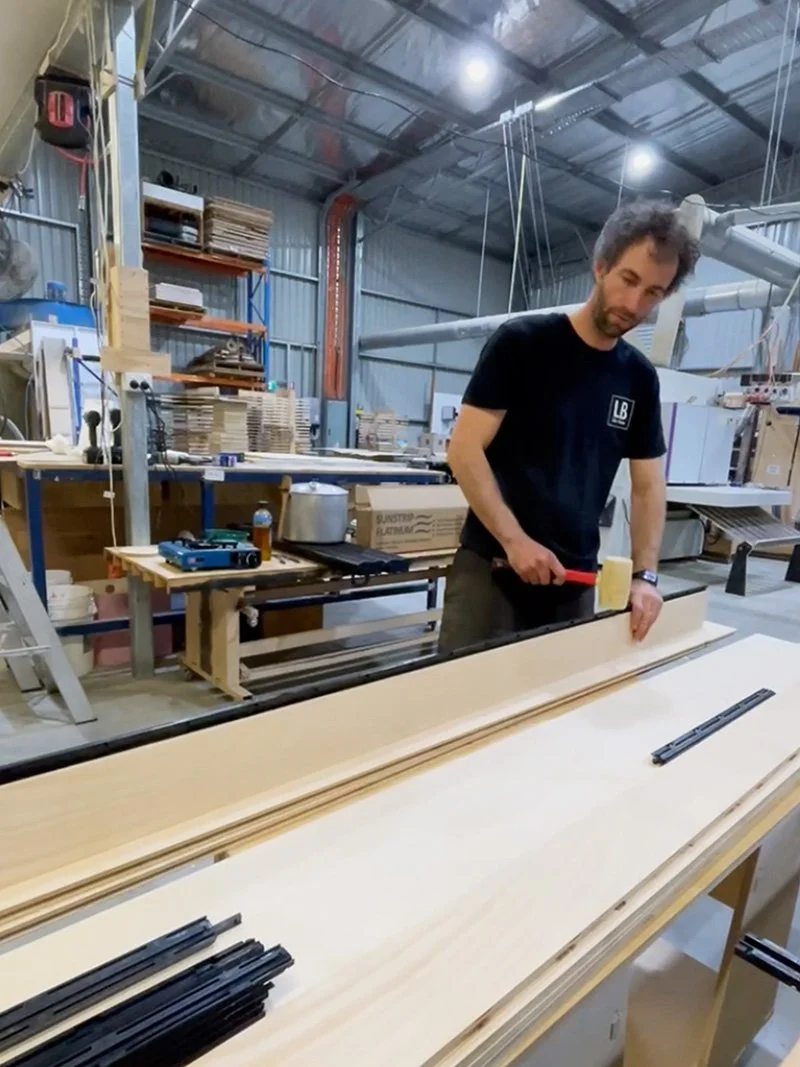

Insert joiner into panel groove.

The joiners fit perfectly into the groove on the edges of a Murall panel - simply tap into the grove on the right side of the panel ensuring the joiner is level with the bottom of the panel.
Fix to wall.

Move along from left to right, locating the panels along the wall. Using construction adhesive and brads (or similar) ensure you are level at the bottom and trim from top as required. Check that you maintain a 6mm spacing between panels. If you wish you can use the Murall skirt profile or similar to ensure you are level at the bottom.

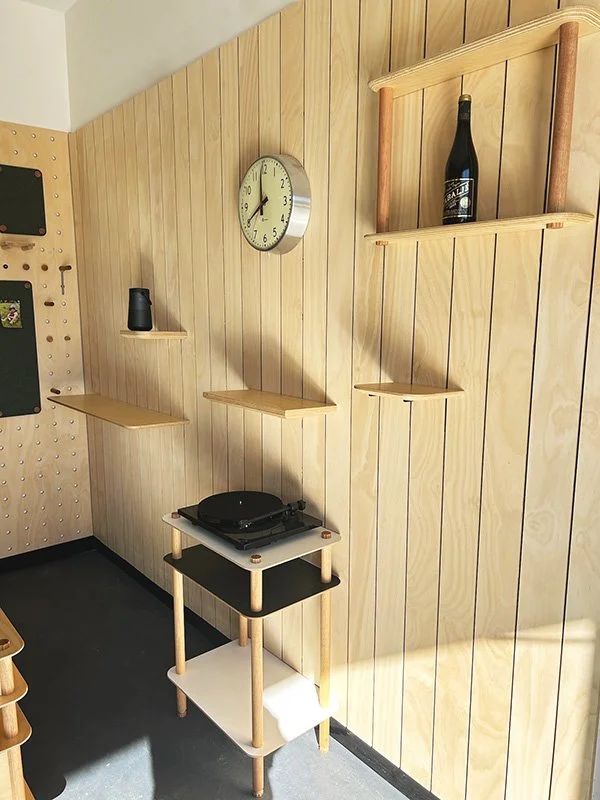

The completed wall.

Once the wall has been installed, all of the concealed fixing points will be aligned and are ready for the addition of Murall Wall Hardware.

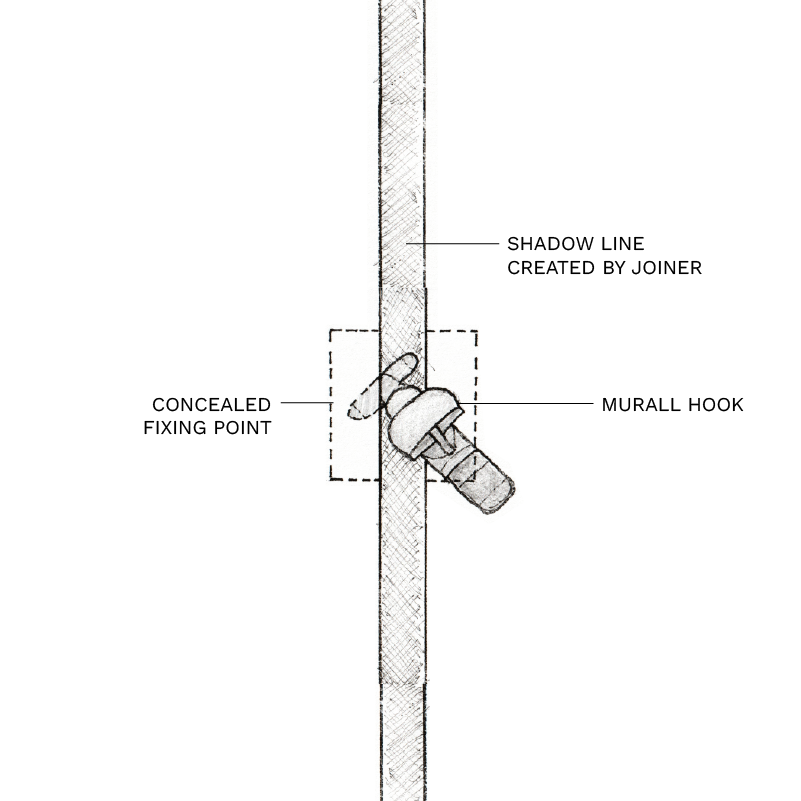

Fitting Wall Hardware

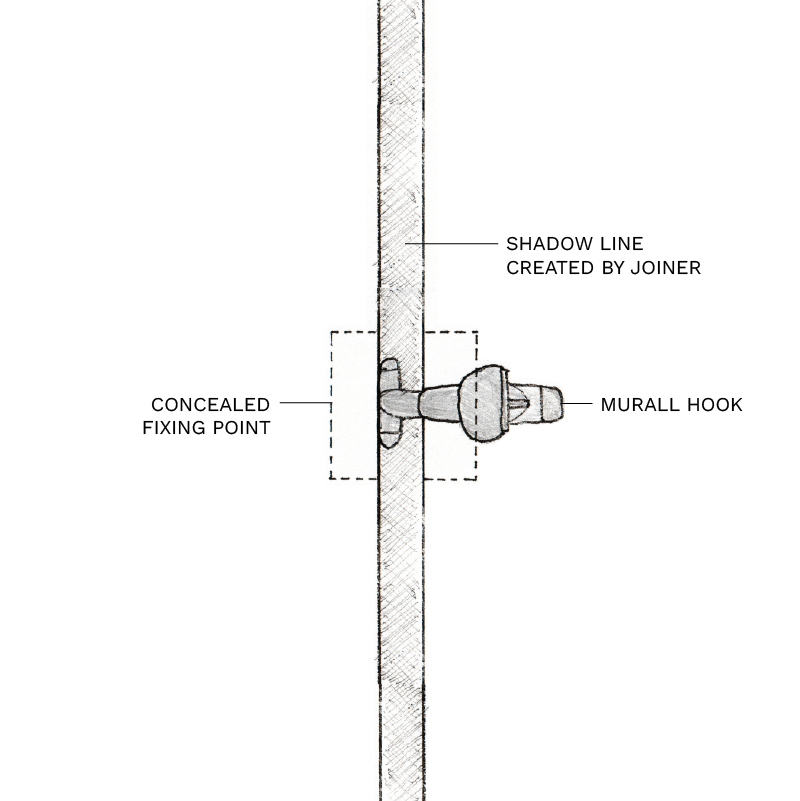

A. Insert

Insert the Murall hook into the groove between panels and locate the arms into the concealed fixing points in the joiner.
B. Turn 90°

Turn the hook clockwise 90°.
C. Drop

Allow the hook to drop into location in the gap between the panels. It is now ready for use.

Murall Product Hierarchy

Wall Panels

Wall Panelling is available in a variety of finishes, panel widths and panel lengths. Murall Panels are customisable to suit your aesthetic and budgetary requirements. Below are some current favourite finishes.

However, if you want to choose to provide your own wall panelling Murall will assist you in detailing your project to ensure a successful outcome.

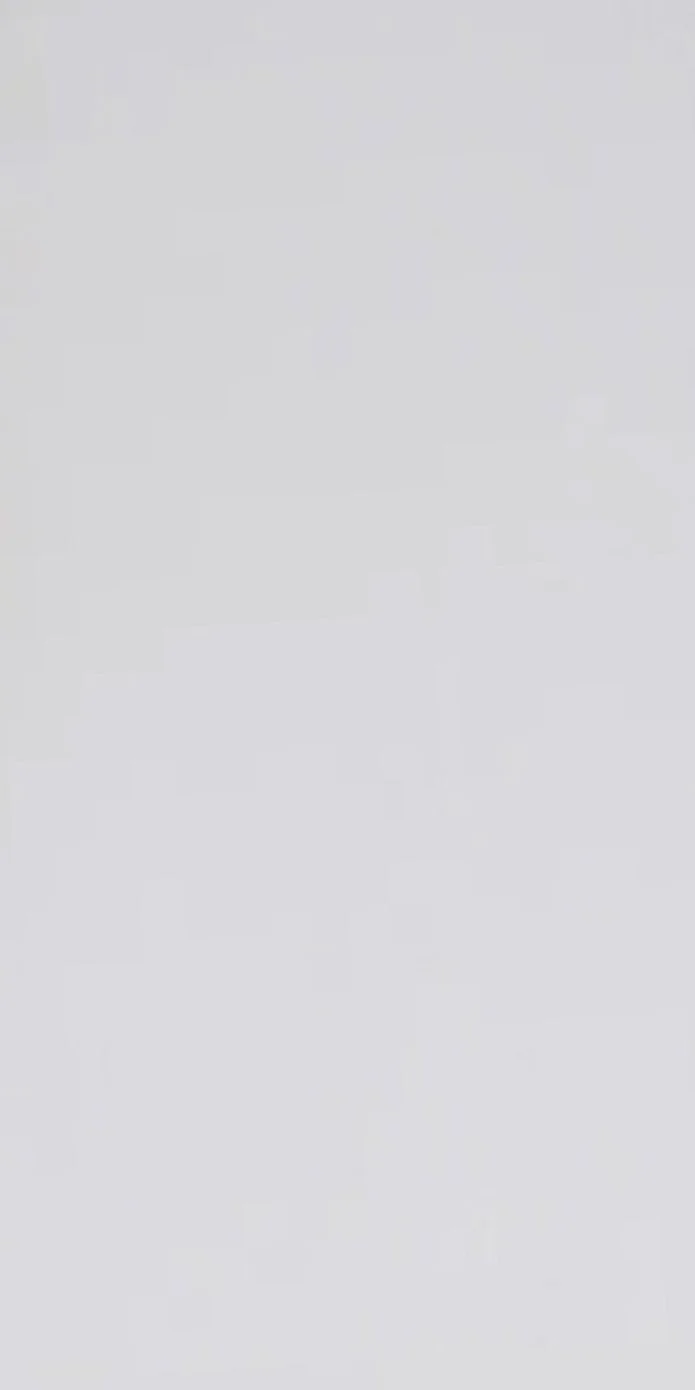

Primed MDF

Natural Moisture Resistant MDF (MR-MDF) is our most cost-effective wall panelling option. As the Murall Panels can be cut and grooved from various sized MDF sheets this option also provides the greatest flexibility in final panel dimensions. Our primed finish comes ready to paint.
Panel thickness = 18mm.
Panel Lengths up to 5.4m (check for maximum widths at this length).
Panel Widths up to 600mm.

Tasmanian Oak Veneer on Black MDF

Black Moisture resistant MDF (MR-MDF) faced with locally sourced Tasmanian Oak Veneer. Needing no finishing in the groove between Murall Panels, this option provides an excellent option for ‘hiding’ the concealed fixing points.
The features of Tasmanian Oak are a heartwood that is pale to light brown in colour with a pinkish tinge. Sapwood is pale yellow, usually distinguishable from the heartwood. Texture moderately coarse but even. Grain sometimes interlocked. Growth rings visible but not prominent. Gum veins are common. Also known as Messmate.
Panel thickness = 18mm.
Panel Lengths up to 3.6m
Panel Widths up to 200mm.

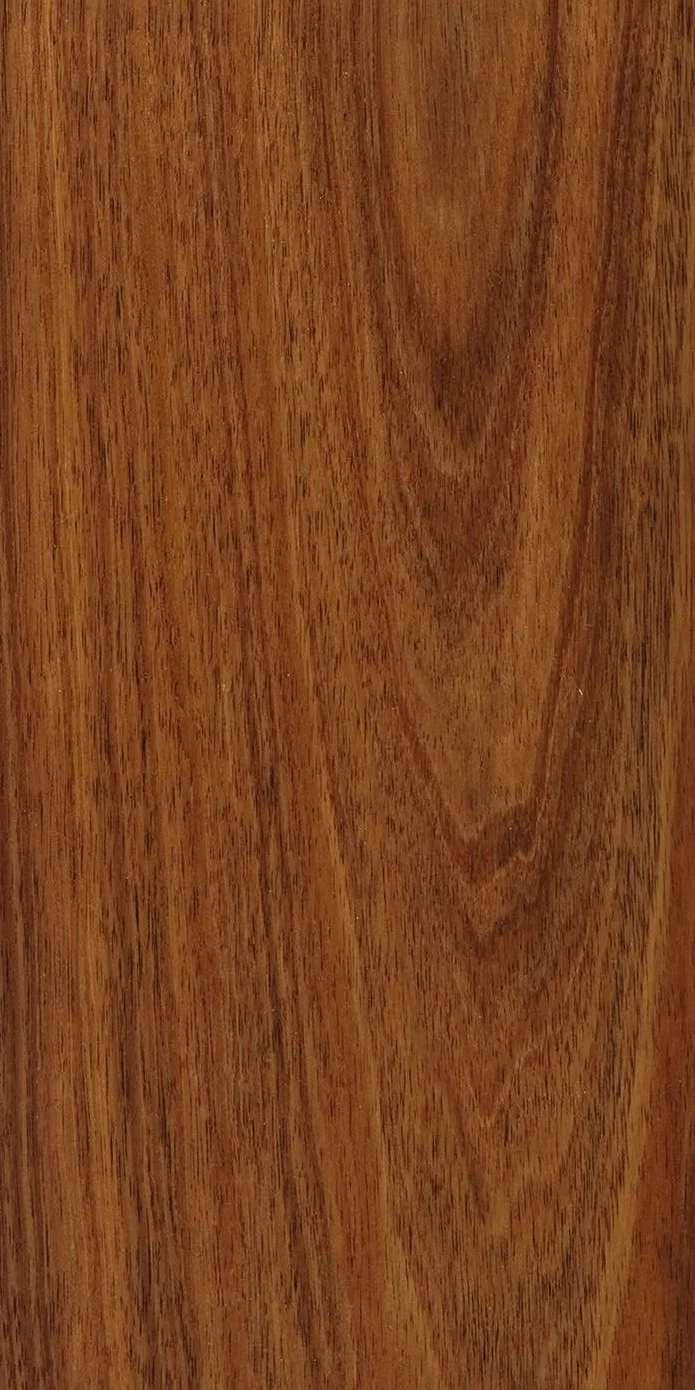

Tasmanian Blackwood Veneer on Black MDF

Black Moisture resistant MDF (MR-MDF) faced with locally sourced Tasmanian Blackwood Veneer. Needing no finishing in the groove between Murall Panels, this option provides an excellent option for ‘hiding’ the concealed fixing points.
The features of Tasmanian Blackwood are a heartwood golden brown, often with narrow bands of darker colour indicative of the growth rings. Sometimes reddish streaks are also present. Grain usually straight but sometimes wavy, producing a fiddleback figure. Also known as Blackwood, Black Wattle.
Panel thickness = 18mm.
Panel Lengths up to 3.6m
Panel Widths up to 200mm.

Solid Tasmanian Oak

Locally sourced solid Tasmanian Oak provides the beauty and strength that comes with solid timbers. With the timber grain seen in the groove between Murall Panels this provides an elevated visual finish.
The features of Tasmanian Oak are a heartwood that is pale to light brown in colour with a pinkish tinge. Sapwood is pale yellow, usually distinguishable from the heartwood. Texture moderately coarse but even. Grain sometimes interlocked. Growth rings visible but not prominent. Gum veins are common. Also known as Messmate.
Panel thickness = 18mm or more.
Panel Lengths can be up to 3.6m.
Panel Widths maximum approximately 160mm.

As these are solid timbers please check availability of sizes at time of quotation.

Solid Tasmanian Blackwood

Locally sourced solid Tasmanian Blackwood provides the beauty and strength that comes with solid timbers. With the timber grain seen in the groove between Murall Panels this provides an elevated visual finish.
The features of Tasmanian Blackwood are a heartwood golden brown, often with narrow bands of darker colour indicative of the growth rings. Sometimes reddish streaks are also present. Grain usually straight but sometimes wavy, producing a fiddleback figure. Also known as Blackwood, Black Wattle.
Panel thickness = 18mm or more.
Panel Lengths can be up to 3.6m.
Panel Widths maximum approximately 160mm.

As these are solid timbers please check availability of sizes at time of quotation.

Solid Cambia Ash

Originally sourced from North America Cambia Ash provides the beauty and strength that comes with solid timbers. With the timber grain seen in the groove between Murall Panels this provides an elevated visual finish.
The Cambia thermal modification process uses high heat to improve its dimensional stability and decay resistance giving it a rick brown colour. Cambia products are more dimensionally stable and less prone to cup, warp and twist. Cambia does not contain any toxic chemicals.
Panel thickness = 18mm or more.
Panel Lengths can be up to 3.6m.
Panel Widths maximum approximately 160mm.

As these are solid timbers please check availability of sizes at time of quotation.

Solid Accoya Charred Finish

Wood is a natural material and each piece is unique. This is can be what makes it so aesthetically pleasing and yet it can be a source of frustration and uncertainty when looking for guaranteed performance quality. However, with Accoya wood you can be sure of its consistent quality, durability and dimensional stability. The Accoya wood production process combines this work with years of proprietary research and investment to deliver consistent results on a commercial scale. Unusually, the effectiveness of the process used to manufacture Accoya wood is measured after the wood has been produced, using an array of sophisticated and proven analytical techniques. With the timber grain seen in the groove between Murall Panels this provides an elevated visual finish.
Timber Charring services are available to your required level of char. The ancient art of Shou Shugi Ban uses a flame to blacken the timber to varying depths.
Panel thickness = 25mm or more.
Panel Lengths – variable.
Panel Widths maximum approximately 300mm.

As these are solid timbers please check availability of sizes at time of quotation.

Matching Skirt

Contact Murall to review how you wish to finish the bottom of your Murall Wall if you don’t wish to run the panelling to the floor. We can provide matching finishes to your selected Murall Wall Panel specification or a variety of other treatments.
Coming soon there will be a specific skirt that will provide appropriate spacing to connect Murall Wall Electrics.
Contact Murall to discuss your skirt requirements.

Wall Hardware

The Murall Wall Hardware Patent designed range is tooled and manufactured in Australia. These components provide the complete connection between the wall and whichever Wall Furniture you may wish to hang from it. These items are available exclusively from your Murall distributor.

Download Wall Hardware rate card.

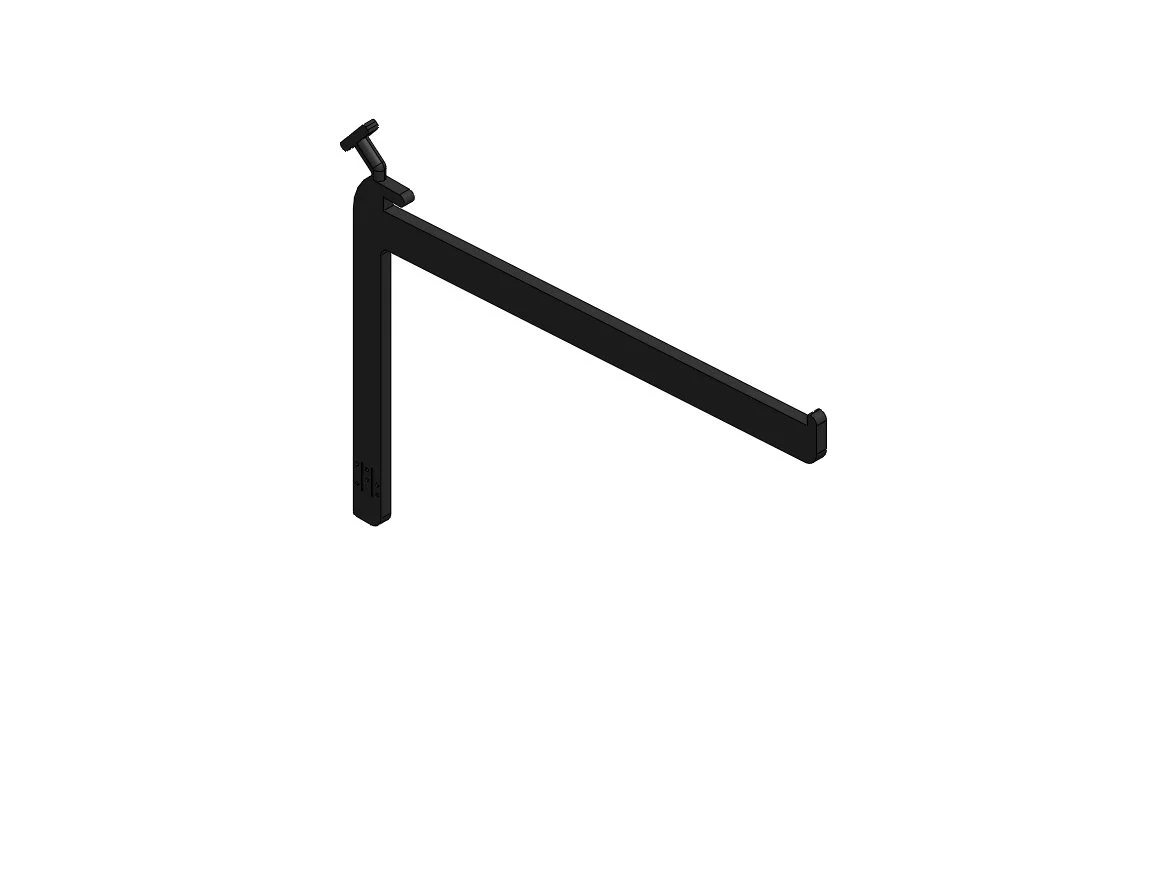

Murall Shelf Bracket with Hook (BH1)

Metal Shelf Bracket for timber Murall Shelf, forged with Holding Hook. Suitable for both semi or fully concealed applications for shelves between 200mm to 300mm depth. Black powder coat finish.
Bracket Thickness = 4mm Mild Steel
Length = 185mm
Height = 135mm

Note: various finishes available on application.

Murall Hanging Hook (HH1)

Murall Hanging Hook with single prong. Works for artworks and most Murall Furniture Fixings. Finished in Black Nickel plating.
Hook Thickness = 5.5mm Cast Zinc Alloy 3
Length = 30mm
Height = 21mm
Note: various finishes available on application.

Murall Joiner (JP1)

Murall Joiner for joining panels, suitable for 18mm + Material, 100mm centre vertical Concealed Fixing point. Made in black Polypropylene.
Depth = 11mm
Length = 500mm (finished length)
Width = 25mm

Note: White finish available on application.

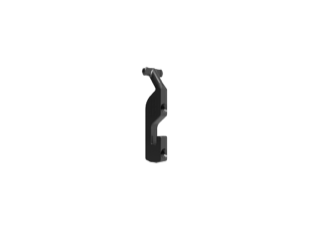

Murall Fixing Hook (HF1)

Murall Fixing Hook comes supplied with two M4 Screws. Used for general fixing applications. Comes with top catch and notch to fit shelf bracket BS1 also. Finished in Black nickel plating.
Hook Thickness = 5.5mm Cast Zinc Alloy 3
Length = 56mm
Height = 14mm
Note: various finishes available on application.

Wall Furniture

We understand that you want endless options of what you wish to hang from your wall. We have designed a range of Wall Furniture as shown below that can be specified to suit your needs. We are also always adding to the Murall range.

Equally if you require anything specific we can either design and supply, or assist you with your own design and supply of Wall Furniture.

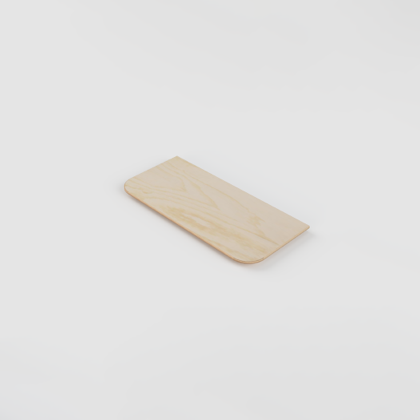

Timber Shelf 19mm - Semi-Concealed Bracket

Rebated and drilled to suit either BH1 Shelf Bracket or BS1 Shelf brackets, at centres to suit selected Murall Panel widths. The rebate and holes ensure the shelf fixes to the brackets without the need for screws or any other hardware.
Shelves can be made in a variety of materials, finishes, sizes and finishes.
Shown is 19mm ply with radiused corners and bevelled edges.
Thickness = 19mm+ (18mm MDF will also work)
Width = As required.
Depth = From 200mm to 300mm.

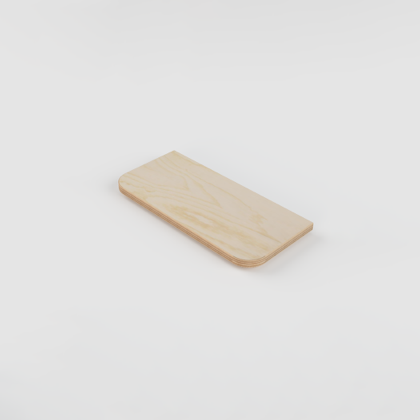

Timber Shelf 31mm - Concealed Bracket

Create the “Floating Shelf”. Rebated and drilled to suit BH1 Shelf Bracket at centres to suit selected Murall Panel widths. The rebate and holes ensure the shelf fixes to the brackets without the need for screws or any other hardware.
Shelves can be made in a variety of materials, finishes, sizes and finishes.
Shown is 31mm two layers of ply (19mm + 12mm) with radiused corners and bevelled edges.
Thickness = 31mm+ (18mm + 12mm MDF will also work)
Width = As required.
Depth = From 200mm to 300mm.

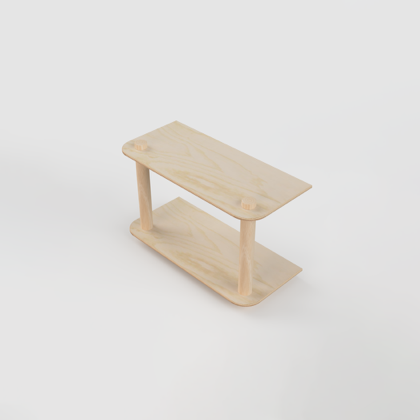

Kitta Double Hanging Shelf

Simple to assemble and hang this double level shelving is made from Australian ply and dowel. Utilising the HH1 Hanging Hook and FH1 Horizontal Fixing Strip it is easy to put up and move into your desired position.
This unit can come in a variety of sizes, finishes and colours.
Shown is 590mm W x 190mm D with 240mm Spacing between shelves 35mm dia. dowel.
Thickness = 16mm Ply Shelves
Diameter = 35mm Dowel
Width = As required.
Depth = From 150mm to 350mm.

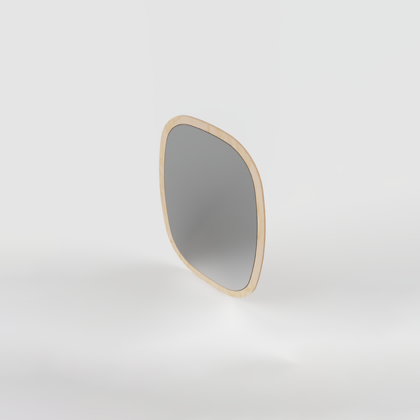

Murall Mirror

Made from Australian ply with bevelled edge it comes in two sizes.
Fitted with FK1 Keyhole Plate it is simple to hang on a HH1 Hanging Hook.
Small:
Thickness = 19mm Ply
Length = 590mm
Width = 448mm
Fitted with 2x FK1 Keyhole Plates it can be hung in landscape or portrait.
Large:
Thickness = 19mm Ply
Length = 1190mm
Width = 448mm
Fitted with 2x FK1 Keyhole Plates it can be hung in landscape or portrait.

Furniture Fixings

Carefully designed specifically to engage with Murall Wall Hardware, these fixings can provide an infinite array of hanging options for you Wall Furniture.

Details of how to install the Furniture Fixings are available if you wish to apply them to your own Wall Furniture.

Download Furniture Fixings rate card.

Murall Shelf Bracket (BS1)

Bracket for timber shelf that requires a HF1 Fixing Hook. Applicable only for semi-concealed use for 200mm to 300mm deep shelves. Black Powder Coat finish.
Bracket Thickness = 4mm Mild Steel
Length = 185mm
Height = 137mm

Note: various finishes available on application.

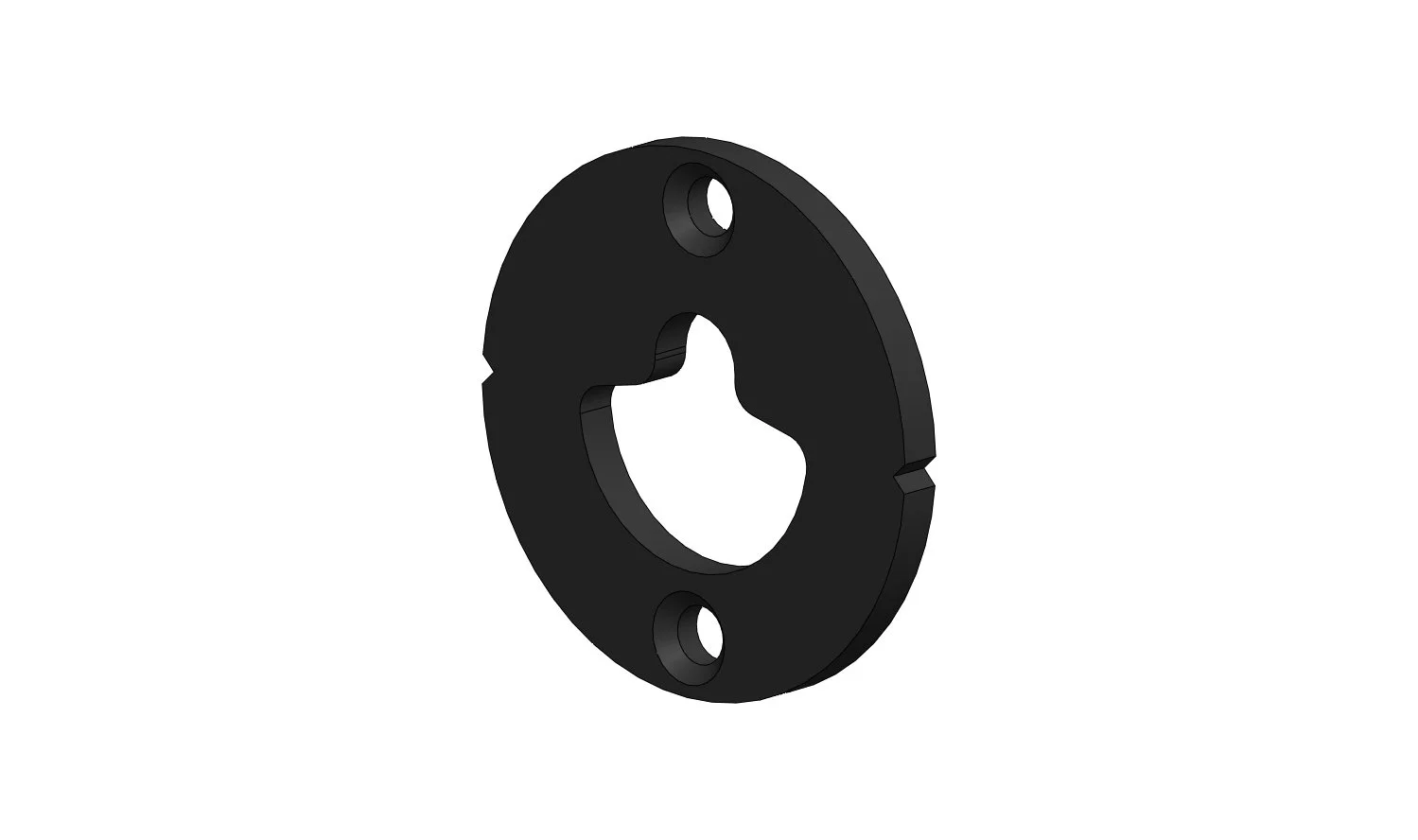

Murall Keyhole Plate (FK1)

Round Keyhole 37mm diameter fixing plate to suit HH1 Hanging Hook. Black powder coat finish.
Plate Thickness = 3mm Mild Steel
Outside Diameter = 37mm

Murall Horizontal Fixing Strip (FH1)

Horizontal fixing strip to suit HH1 Hanging Hook.
Black powder coat finish.
Strip Thickness = 3mm Mild Steel
Length = 120mm
Height = 14mm

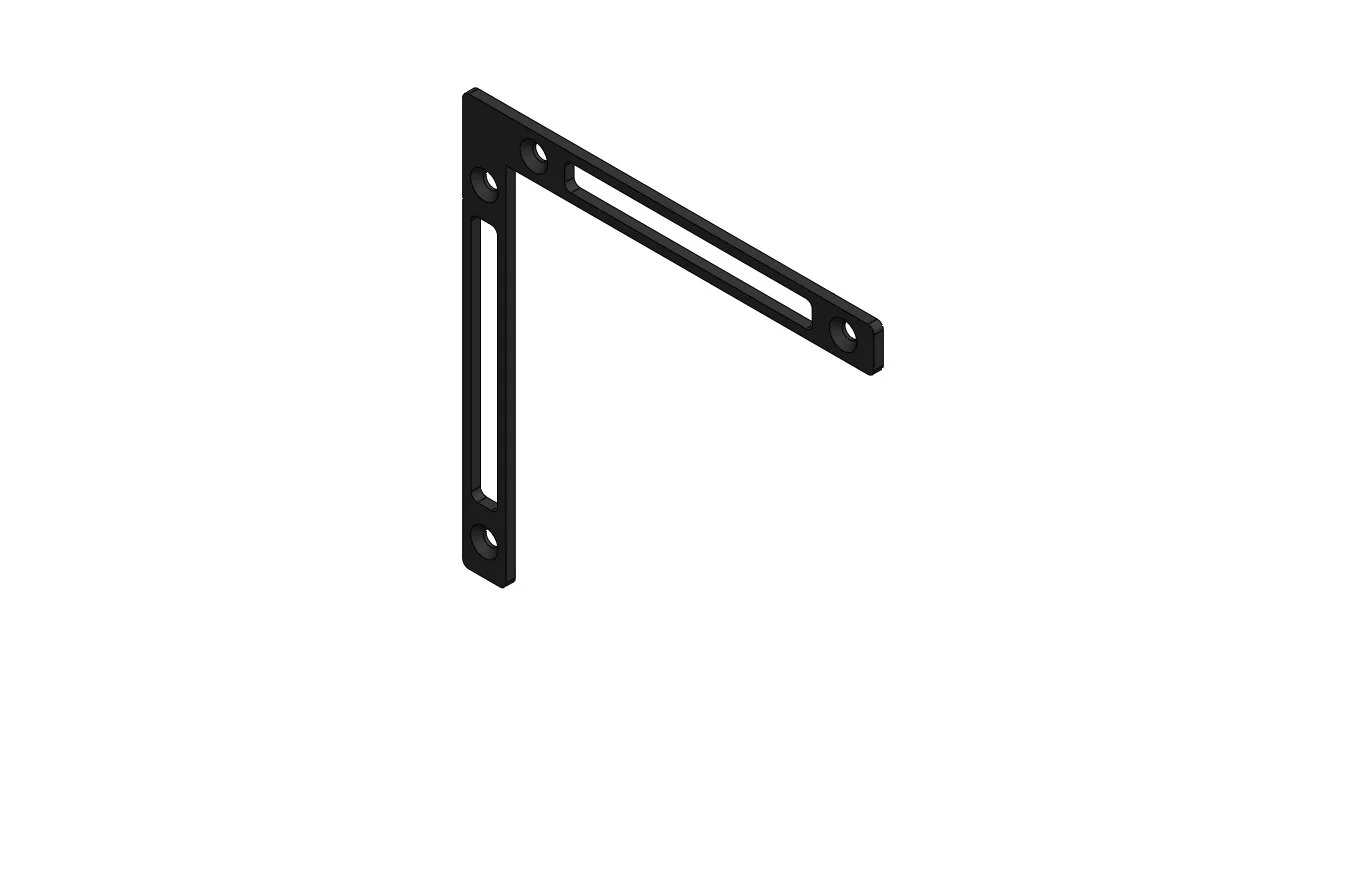

Murall Cab-Corner Bracket (FC1)

Corner Bracket for cabinet applications to suit HH1 Hanging Hook. Provides right angle holding options.
Black powder coat finish.
Strip Thickness = 3mm Mild Steel
Length = 133mm
Height = 133mm
Width = 14mm

Murall Keyhole Strip (FS1)

Vertical fixing strip with keyholes providing multi location fixing options onto HH1 Hanging Hook.
Black powder coat finish.
Strip Thickness = 3mm Mild Steel
Length = 200mm
Width = 14mm

Murall TV Support Plate (FT1)

Install a TV wall mount with 4x Murall TV Support Plates (FT1) and 8x Murall Fixing Hooks (HF1)
Black powder coat finish.
Plate Thickness = 3mm Mild Steel
Length = 188mm
Width = 30mm
